TPD2S300YFFR - Texas Instruments

Description: TPD2S300 USB Type C Short-to-VBus and IEC ESD Protector for CC

Download TPD2S300YFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

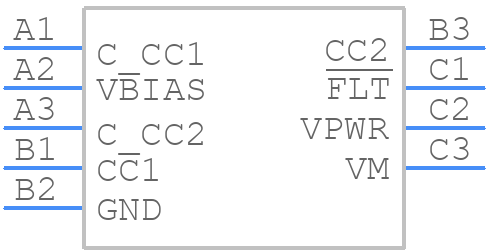

TPD2S300YFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPD2S300YFFR - Texas Instruments PCB footprint - BGA - BGA - YFF0009 dsbga
click to zoom
3D Models
TPD2S300YFFR - Texas Instruments - 3D model - BGA - YFF0009 dsbga
click to zoom

TPD2S300YFFR Details

  • Manufacturer Part Number:

    TPD2S300YFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-XBGA-B9

  • JESD-609 Code:

    e1

  • Length:

    1.36 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA9,3X3,16

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +2.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.36 mm

TPD2S300YFFR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPD2S300YFFR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the protection diodes. Additionally, it's recommended to use a common ground plane for the input and output stages.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source between 2.5V and 5.5V, and the GND pin to a solid ground plane. The EN pin should be tied to VCC or a logic signal for enable/disable functionality.
  • The TPD2S300YFFR can handle surge currents up to 30A for 100ns, and 10A for 1ms, according to the IEC 61000-4-5 standard.
  • Yes, the TPD2S300YFFR is rated for operation up to 125°C, making it suitable for high-temperature applications. However, the device's performance and reliability may degrade at extreme temperatures.
  • Choose external components based on the specific application requirements, such as the input voltage, output current, and desired level of protection. Texas Instruments provides a selection guide and application notes to help with component selection.
