A good PCB layout for TPD2S703QDGSRQ1 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
To ensure EMC, use a shielded enclosure, keep cables and connectors away from the device, and use EMI filters or common-mode chokes on the input and output lines. Additionally, follow TI's guidelines for PCB layout and component selection.
The maximum operating temperature range for TPD2S703QDGSRQ1 is -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's essential to consider thermal management in the system design.
Yes, TPD2S703QDGSRQ1 is suitable for high-reliability and safety-critical applications. It's designed to meet the requirements of automotive and industrial systems, and TI provides documentation and support for these applications.
To troubleshoot issues with TPD2S703QDGSRQ1, start by checking the power supply, input, and output connections. Use an oscilloscope to verify signal integrity and check for noise or distortion. Consult TI's application notes and technical support resources for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPD2S703QDGSRQ1 Overview

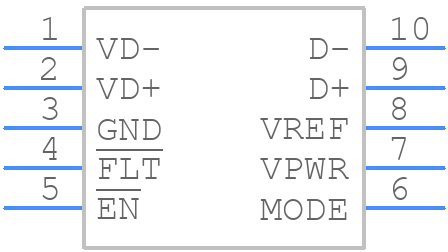

Use the download button to access the TPD2S703QDGSRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD2S,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
