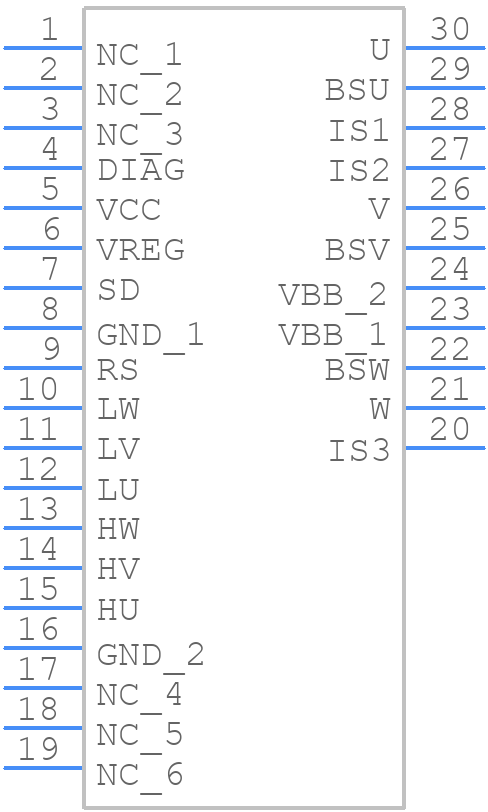

TPD4206F - Toshiba

TPD4206F Details

• Manufacturer Part Number:

  TPD4206F

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Package Description:

  SSOP-30

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2018-04-17

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  3

• Analog IC - Other Type:

  3-PHASE BRUSHLESS DC MOTOR CONTROLLER

• JESD-30 Code:

  R-PDSO-G30

• Length:

  20 mm

• Number of Functions:

  1

• Number of Terminals:

  30

• Operating Temperature-Max:

  100 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  2.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SOP30,.56,106/40

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Seated Height-Max:

  2.2 mm

• Supply Current-Max (Isup):

  5 mA

• Supply Voltage-Max (Vsup):

  16.5 V

• Supply Voltage-Min (Vsup):

  13.5 V

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Width:

  11 mm
