A good PCB layout for the TPD4207F,FQ involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 10uF capacitor between the VIN and GND pins to filter out noise.
To ensure the TPD4207F,FQ operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage is within the recommended range. Also, ensure the output current is within the specified maximum rating.
The recommended input capacitor value for the TPD4207F,FQ is 10uF to 22uF, with a voltage rating of 25V or higher. This capacitor helps to filter out noise and ripple on the input voltage.
The TPD4207F,FQ is rated for operation up to 125°C, but its performance may degrade at high temperatures. If you need to operate the device in a high-temperature environment, ensure you provide adequate heat sinking and follow the recommended thermal design guidelines.
To troubleshoot issues with the TPD4207F,FQ, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and the PCB layout is correct. Check for signs of overheating, and ensure the device is not exposed to excessive noise or EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPD4207F,FQ Overview

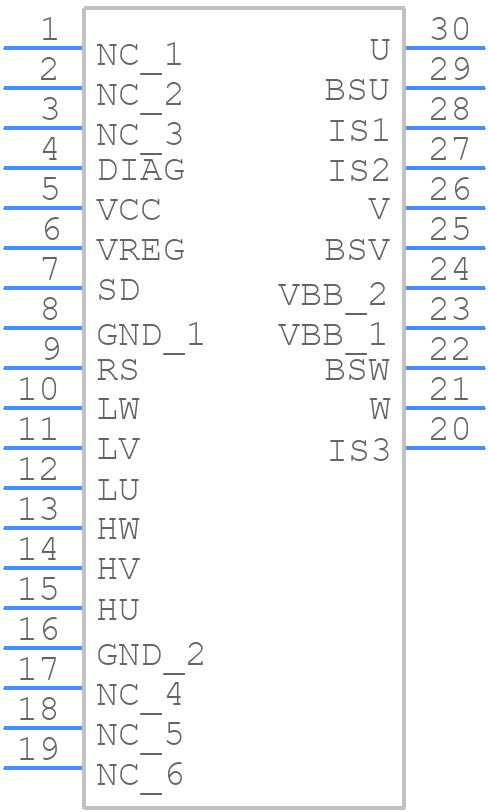

Use the download button to access the TPD4207F,FQ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD42,
or try a keyword search, such as Motion Control Electronics
