TPD4S214YFFR - Texas Instruments

Description: USB OTG Companion Device With Vbus Overvoltage, Overcurrent Protection, and Four-Channel ESD Clamp

Download TPD4S214YFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

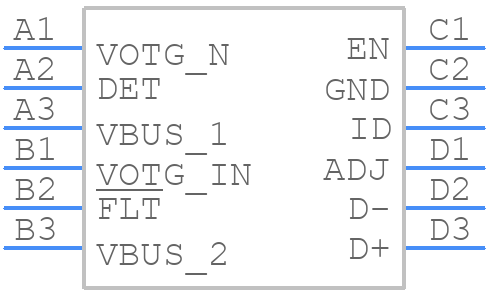

TPD4S214YFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPD4S214YFFR - Texas Instruments PCB footprint - BGA - BGA - YFF0012_
click to zoom
3D Models
TPD4S214YFFR - Texas Instruments - 3D model - BGA - YFF0012_
click to zoom

TPD4S214YFFR Details

  • Manufacturer Part Number:

    TPD4S214YFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    CURRENT LIMIT:1.363A; THERMAL SHUTDOWN:141C

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-XBGA-B12

  • JESD-609 Code:

    e1

  • Length:

    1.69 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max (Isup):

    0.2 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +3.2V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.39 mm

TPD4S214YFFR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TPD4S214YFFR is -40°C to 125°C.
  • To prevent damage to the ESD protection diodes, ensure that the PCB assembly process follows the recommended handling and storage procedures, and that the devices are not exposed to excessive heat, moisture, or mechanical stress.
  • Yes, the TPD4S214YFFR is suitable for high-speed signal applications up to 10 Gbps, but ensure that the PCB layout and signal integrity are properly designed to minimize signal degradation and reflections.
  • The pull-up/pull-down resistor values depend on the specific application and signal requirements. As a general guideline, use a pull-up resistor value between 1 kΩ to 10 kΩ, and a pull-down resistor value between 10 kΩ to 100 kΩ.
  • To minimize signal degradation and ensure optimal performance, follow the recommended PCB layout and routing guidelines in the datasheet, including using a solid ground plane, minimizing trace lengths, and avoiding vias and right-angle bends.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPD4S214YFFR Overview

Use the download button to access the TPD4S214YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD4S, or try a keyword search, such as Power Management Circuits
