Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a capacitance value between 1-10 μF, a voltage rating higher than the input voltage, and a low equivalent series resistance (ESR). TI also provides a capacitor selection tool to help with this process.
The TPD4S480RUKR has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management to prevent overheating and maintain reliability.
Yes, the TPD4S480RUKR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using automotive-grade processes. However, it's essential to review the device's qualification data and perform additional testing as required by the specific application.
TI provides a troubleshooting guide in the device's datasheet and application notes. Common issues can be diagnosed using the device's fault flags and error reporting mechanisms. Additionally, TI's support resources, such as the E2E forum and technical support team, can provide guidance on troubleshooting and resolving issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPD4S480RUKR Overview

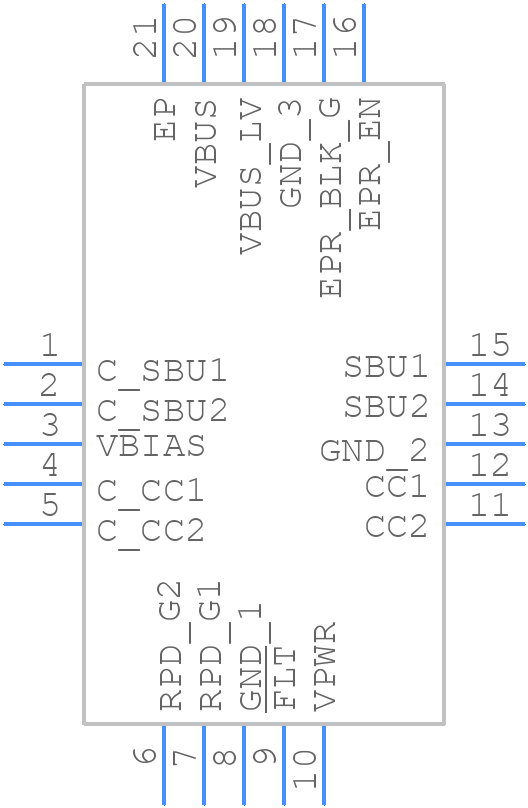

Use the download button to access the TPD4S480RUKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD4S,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
