A good PCB layout for the TPD6S300ARUKR involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the protection diodes. Additionally, it's recommended to use a common ground point for the device and the protection diodes.
To ensure proper biasing, connect the VCC pin to a stable voltage source between 2.5V and 5.5V, and ensure the input voltage is within the recommended operating range. Also, make sure the device is properly decoupled with a 0.1uF capacitor between VCC and GND.
The TPD6S300ARUKR can handle surge currents up to 30A for 100ns, and up to 10A for 1ms. However, it's recommended to design the system to limit surge currents to minimize stress on the device.
Choose external components that meet the recommended values and tolerances specified in the datasheet. For example, the recommended capacitance value for the bypass capacitor is 0.1uF, and the recommended resistance value for the series resistor is 1kΩ.
The TPD6S300ARUKR operates over a temperature range of -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate within the recommended temperature range for optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPD6S300ARUKR Overview

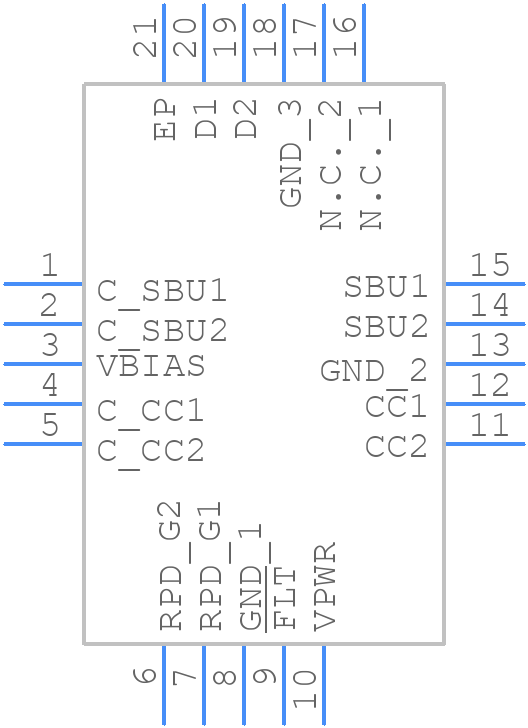

Use the download button to access the TPD6S300ARUKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD6S,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
