TPD7S019-15RSVR - Texas Instruments

Description: 7-Channel Integrated ESD Solution for VGA Port With Integrated Level Shifter and Matching Impedance

Download TPD7S019-15RSVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

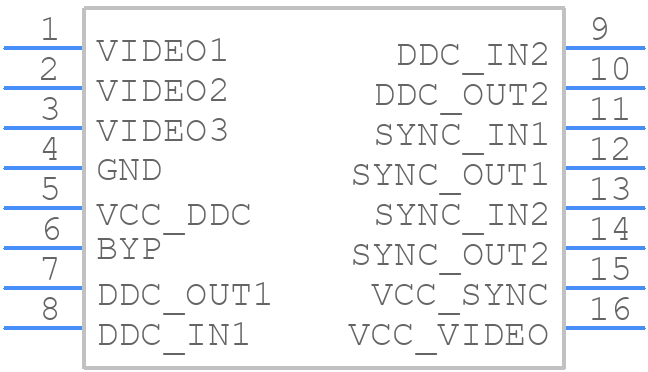

Symbol
TPD7S019-15RSVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPD7S019-15RSVR - Texas Instruments PCB footprint - Other - Other - TPD7S019-15RSVR-2
click to zoom
3D Models
TPD7S019-15RSVR - Texas Instruments - 3D model - Other - TPD7S019-15RSVR-2
click to zoom

TPD7S019-15RSVR Details

  • Manufacturer Part Number:

    TPD7S019-15RSVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.07X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

TPD7S019-15RSVR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TPD7S019-15RSVR is -40°C to 125°C.
  • To prevent damage to the ESD protection diodes during PCB assembly, ensure that the board is handled and assembled in an ESD-safe environment, and that the device is not exposed to excessive voltage or current during soldering.
  • Yes, the TPD7S019-15RSVR is suitable for USB applications, as it provides ESD protection for high-speed data lines and meets the USB 2.0 specification for ESD protection.
  • For optimal performance, place the TPD7S019-15RSVR as close as possible to the connector or interface being protected, and ensure that the device is connected to a solid ground plane to minimize inductance and improve ESD protection.
  • The value of the external capacitor (C1) depends on the specific application and the desired level of ESD protection. A general guideline is to use a capacitor with a value between 1 nF and 10 nF, but the optimal value may need to be determined through experimentation and testing.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPD7S019-15RSVR Overview

Use the download button to access the TPD7S019-15RSVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD7S, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
