TPD7S019-65DBQR - Texas Instruments

Description: Interface - Specialized ESD SOLUTION - 7-CHANNEL INTEGRATED ESD SOLUTION FOR VGA PORT WITH INTEGRATED LEVEL SHIFTER AND

Download TPD7S019-65DBQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

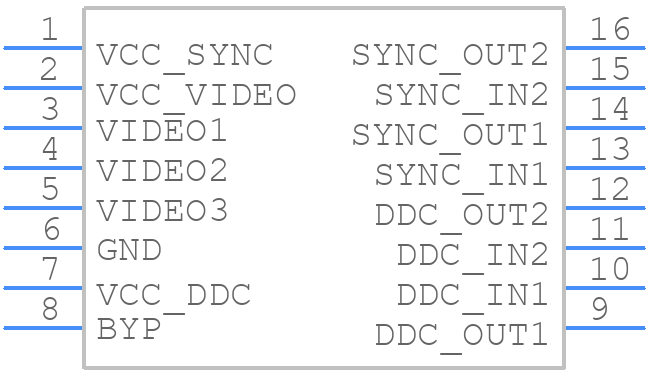

TPD7S019-65DBQR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPD7S019-65DBQR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ (R-PDSO-G16)
click to zoom
3D Models
TPD7S019-65DBQR - Texas Instruments - 3D model - Small Outline Packages - DBQ (R-PDSO-G16)
click to zoom

TPD7S019-65DBQR Details

  • Manufacturer Part Number:

    TPD7S019-65DBQR

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SSOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

TPD7S019-65DBQR Frequently Asked Questions (FAQs)

  • The TPD7S019-65DBQR can operate from -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance.
  • To ensure proper power-on and power-off, make sure to follow the recommended power-up and power-down sequences, and provide a clean and stable power supply to the device.
  • For optimal performance, follow the recommended PCB layout guidelines in the datasheet, including keeping the signal traces short and away from noise sources, and using a solid ground plane.
  • To troubleshoot issues, start by reviewing the datasheet and application notes, then use debugging tools such as oscilloscopes and logic analyzers to identify the root cause of the issue.
  • Yes, the TPD7S019-65DBQR has built-in ESD protection, but it's still important to follow proper ESD handling and storage procedures to prevent damage to the device.
