TPD8F003DQDR - Texas Instruments

Description: Texas Instruments, EMI Filter IC 200MHz WSON SMD, Flat Contact Termination, 3.4 x 1.45 x 0.75mm

Download TPD8F003DQDR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

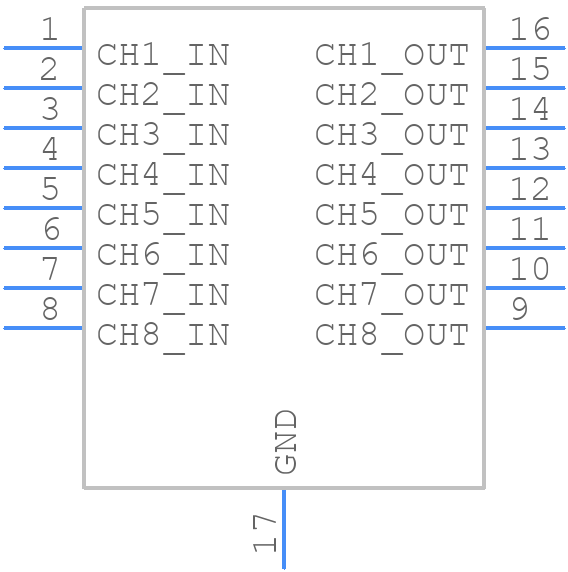

TPD8F003DQDR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPD8F003DQDR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - wson17
click to zoom
3D Models
TPD8F003DQDR - Texas Instruments - 3D model - Small Outline No-lead - wson17
click to zoom

TPD8F003DQDR Details

  • Manufacturer Part Number:

    TPD8F003DQDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Approvals:

    IEC

  • Capacitance:

    8.5 µF

  • DC Resistance-Max:

    115 Ω

  • Filter Type:

    DATA LINE FILTER

  • Height:

    0.8 mm

  • JESD-609 Code:

    e4

  • Length:

    3.4 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Functions:

    8

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    PLASTIC

  • Packing Method:

    TAPE AND REEL

  • Rated Voltage:

    5.5 V

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Width:

    1.45 mm

TPD8F003DQDR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TPD8F003DQDR is -40°C to 125°C.
  • To ensure EMC, follow proper PCB design and layout guidelines, use shielding, and implement filtering and grounding techniques as recommended in the TI application notes.
  • The recommended power-up sequence is to apply VCC first, followed by VIO, and then the input signals. This ensures proper device initialization and prevents latch-up.
  • Use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to protect against electrostatic discharge. Follow TI's ESD protection guidelines for proper implementation.
  • The maximum current rating for the output pins is 20 mA. Exceeding this rating may cause device damage or malfunction.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPD8F003DQDR Overview

Use the download button to access the TPD8F003DQDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD8F, or try a keyword search, such as Data Line Filters
