Texas Instruments recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the TPD8S300ARUKR. Additionally, it's essential to minimize the distance between the device and the TVS diodes, and to use a common ground point for the device and the TVS diodes.
The TPD8S300ARUKR requires a 3.3V or 5V power supply, and a bias voltage (VCC) of 1.8V to 5.5V. Ensure the power supply is stable and decoupled with capacitors to minimize noise and ripple. Also, ensure the bias voltage is within the recommended range to maintain device performance.
The TPD8S300ARUKR is designed to handle surge currents up to 30A, 8/20μs waveform, as per IEC 61000-4-5. However, it's essential to consider the PCB layout, component selection, and system design to ensure the device can handle the expected surge currents.
The TPD8S300ARUKR is rated for operation up to 125°C. However, it's essential to consider the device's power dissipation, PCB thermal design, and system-level thermal management to ensure reliable operation in high-temperature environments.
Follow the recommended soldering profile and assembly guidelines provided by Texas Instruments. Ensure the device is handled and stored properly to prevent damage, and use a soldering iron with a temperature range of 250°C to 260°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPD8S300ARUKR Overview

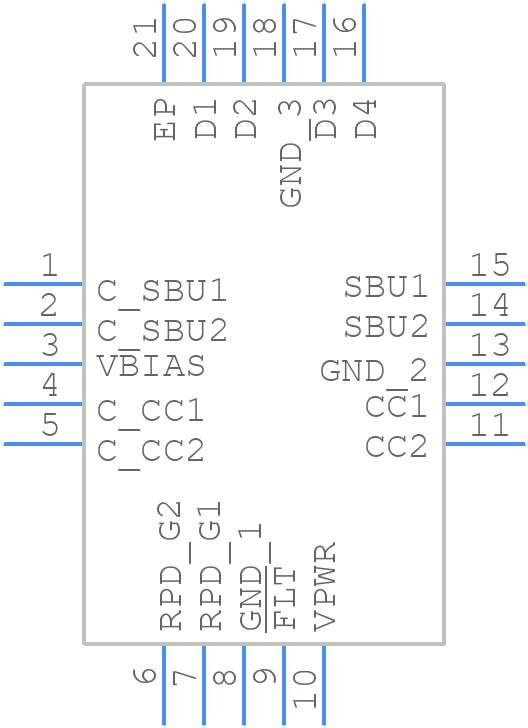

Use the download button to access the TPD8S300ARUKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPD8S,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
