TPH1400ANH,L1Q - Toshiba

Description: Pb-F POWER MOSFET TRANSISTOR SOP-8-ADV MOQ=3000 PD=45W F=1MHZ

Download TPH1400ANH,L1Q Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

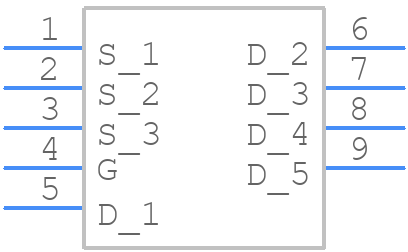

TPH1400ANH,L1Q - Toshiba - PCB symbol
click to zoom
PCB Footprints

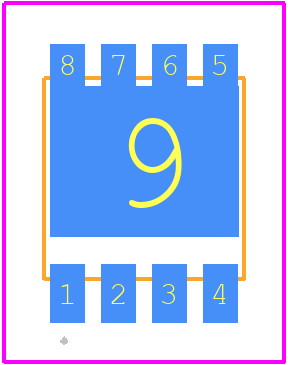

TPH1400ANH,L1Q - Toshiba PCB footprint - Other - Other - TPH1400ANH,L1Q-1
click to zoom
3D Models
TPH1400ANH,L1Q - Toshiba - 3D model - Other - TPH1400ANH,L1Q-1
click to zoom

TPH1400ANH,L1Q Details

  • Manufacturer Part Number:

    TPH1400ANH,L1Q

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    5.85

  • Avalanche Energy Rating (Eas):

    46 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    42 A

  • Drain-source On Resistance-Max:

    0.0136 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    50 pF

  • JESD-30 Code:

    S-PDSO-F8

  • Number of Elements:

    1

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    48 W

  • Pulsed Drain Current-Max (IDM):

    91 A

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
