TPIC0108BDWP - Texas Instruments

Description: Motor/Motion/Ignition Controllers & Drivers INTEL H-BRIDGE 180 MOHM

Download TPIC0108BDWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

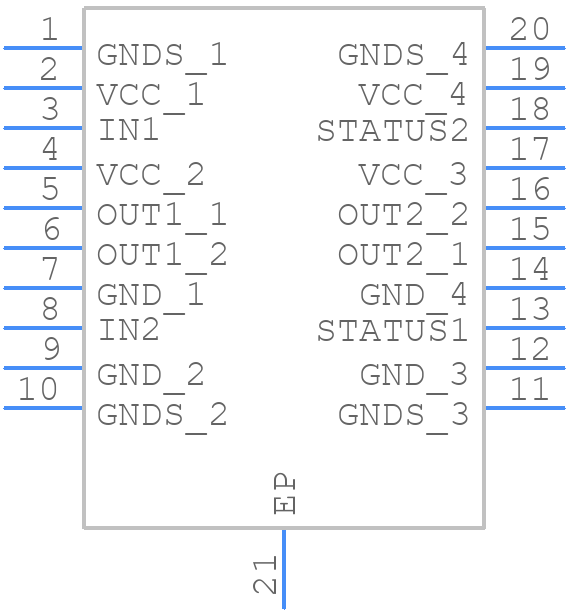

TPIC0108BDWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

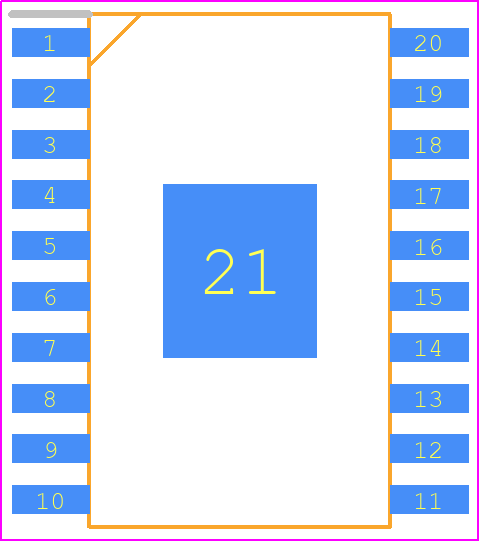

TPIC0108BDWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWP (R-PDSO-G20)_
click to zoom
3D Models
TPIC0108BDWP - Texas Instruments - 3D model - Small Outline Packages - DWP (R-PDSO-G20)_
click to zoom

TPIC0108BDWP Details

  • Manufacturer Part Number:

    TPIC0108BDWP

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    POWERPAD, PLASTIC, SOP-20

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    12.825 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    0.02 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    13.2 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.52 mm

TPIC0108BDWP Frequently Asked Questions (FAQs)

  • The maximum current rating of each channel is 1.5A, but it's recommended to derate the current to 1A or less for reliable operation.
  • Make sure to connect the VCC pin to a stable 5V power supply, and decouple it with a 0.1uF capacitor to ground. Also, ensure the input voltage is within the recommended operating range of 4.5V to 5.5V.
  • The EN pin is an active-low input that enables or disables the entire device. When EN is low, all outputs are turned off, and the device enters a low-power state. When EN is high, the device is enabled, and the outputs are active.
  • The TPIC0108BDWP has a thermal pad on the bottom of the package, which should be connected to a copper plane on the PCB for heat dissipation. Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate at high temperatures or high currents.
  • Keep the PCB traces short and wide to minimize inductance and resistance. Use a solid ground plane under the device, and ensure the input and output traces are separated to minimize noise coupling. Also, avoid running high-current traces under the device's thermal pad.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPIC0108BDWP Overview

Use the download button to access the TPIC0108BDWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPIC0, or try a keyword search, such as Motion Control Electronics
