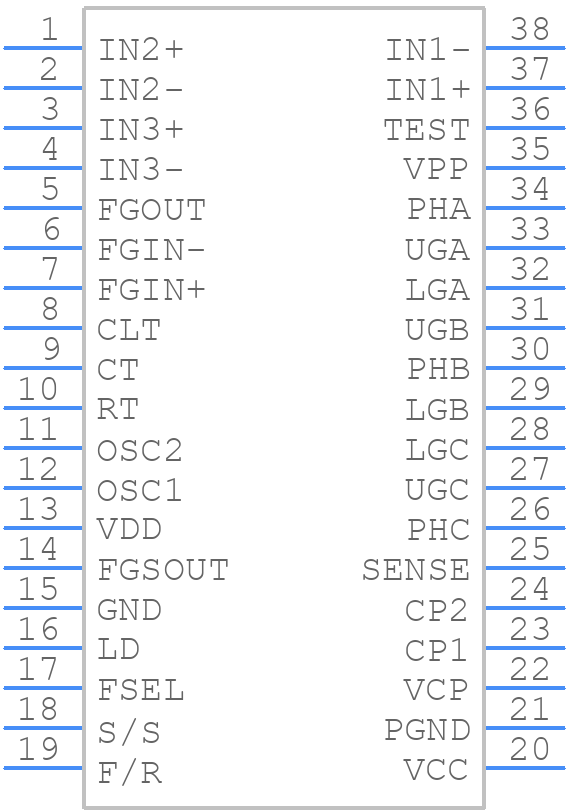

TPIC43T02DA - Texas Instruments

TPIC43T02DA Details

• Manufacturer Part Number:

  TPIC43T02DA

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSSOP

• Package Description:

  PLASTIC, TSSOP-38

• Pin Count:

  38

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog IC - Other Type:

  3-PHASE BRUSHLESS DC MOTOR CONTROLLER

• JESD-30 Code:

  R-PDSO-G38

• JESD-609 Code:

  e4

• Length:

  12.5 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  38

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP38,.32

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  220

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Supply Current-Max (Isup):

  18 mA

• Supply Voltage-Max (Vsup):

  28 V

• Supply Voltage-Min (Vsup):

  18 V

• Supply Voltage-Nom (Vsup):

  24 V

• Surface Mount:

  YES

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  20

• Width:

  6.2 mm
