The maximum current rating of the TPIC6B259N is 1.5A per channel, with a total current limit of 3A for all channels combined.
To ensure reliable operation in high-temperature environments, it is recommended to derate the current and voltage ratings of the device according to the thermal derating curve provided in the datasheet. Additionally, proper thermal management, such as heat sinking and airflow, should be implemented to keep the device junction temperature within the recommended operating range.
Yes, the TPIC6B259N can be used as a high-side switch, but it requires an external voltage supply for the gate driver. The device can be configured to operate as a high-side switch by connecting the output to the drain of an external N-channel MOSFET, and the input to the gate of the MOSFET.
To protect the TPIC6B259N from overvoltage and undervoltage conditions, it is recommended to use external voltage protection devices, such as TVS diodes or voltage regulators, to clamp the input voltage to within the recommended operating range. Additionally, undervoltage protection can be implemented using a voltage supervisor or reset IC.
Yes, the TPIC6B259N can be used in high-frequency switching applications, but it is recommended to follow proper PCB layout and design guidelines to minimize parasitic inductance and capacitance. Additionally, the device's switching frequency should be limited to within the recommended range to avoid excessive power dissipation and electromagnetic interference (EMI).
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPIC6B259N Overview

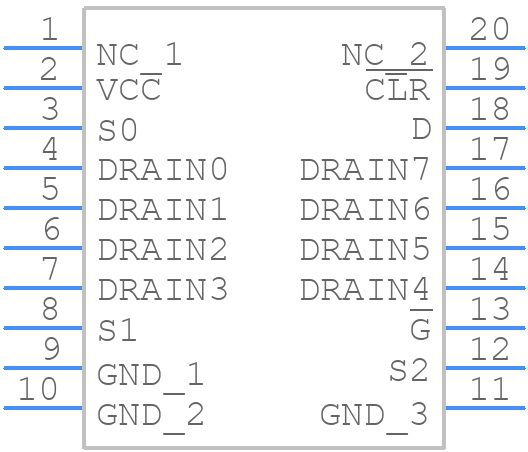

Use the download button to access the TPIC6B259N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPIC6,
or try a keyword search, such as Other Logic ICs
