PARALLEL OUTPUT IS REGISTERED; UNREGISTERED SERIAL SHIFT RIGHT OUTPUT
Count Direction:
RIGHT
Family:
6C
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e4
Length:
9.9 mm
Load Capacitance (CL):
30 pF
Logic IC Type:
SERIAL IN PARALLEL OUT
Max Frequency@Nom-Sup:
10000000 Hz
Moisture Sensitivity Level:
1
Number of Bits:
8
Number of Functions:
8
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Characteristics:
OPEN-DRAIN
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP16,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Packing Method:
TUBE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Trigger Type:
POSITIVE EDGE
Width:
3.9 mm
fmax-Min:
10 MHz
TPIC6C596D Frequently Asked Questions (FAQs)
The maximum current rating of the TPIC6C596D is 1.5A per channel, with a total current limit of 3A for all channels combined.
To ensure safe operating conditions, ensure that the device is operated within the recommended operating conditions specified in the datasheet, including voltage, current, and temperature ranges. Additionally, follow proper PCB design and layout guidelines to minimize thermal resistance and electromagnetic interference.
The enable pin (EN) is used to enable or disable the output drivers of the TPIC6C596D. When EN is high, the output drivers are enabled, and when EN is low, the output drivers are disabled.
To handle thermal management for the TPIC6C596D, ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider using a heat sink or thermal pad to dissipate heat. Monitor the device's junction temperature (TJ) and ensure it remains within the recommended operating range.
For optimal performance and minimal electromagnetic interference, follow these layout and routing guidelines: keep the device close to the load, use short and wide traces, avoid routing signals near the device's power pins, and use a solid ground plane.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPIC6C596D Overview

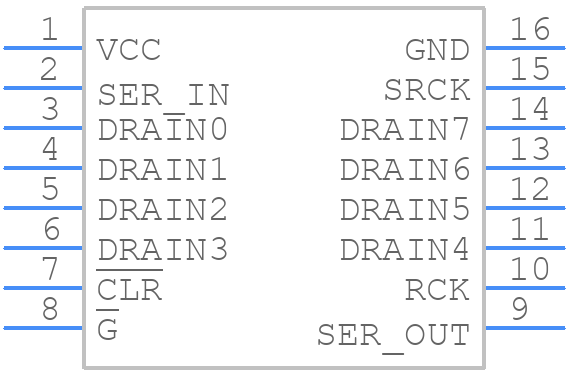

Use the download button to access the TPIC6C596D schematic symbol, PCB footprint, and 3D model.
