The maximum current rating of the TPIC8101DWRG4 is 1.5A per channel, with a total current limit of 3A for all channels combined.
To ensure reliable operation in high-temperature environments, it is recommended to follow proper thermal design and layout guidelines, such as using a heat sink, minimizing thermal resistance, and ensuring good airflow. Additionally, the device should be operated within its specified temperature range of -40°C to 125°C.
The minimum input voltage required for the TPIC8101DWRG4 to function properly is 4.5V, although it is recommended to operate the device at a minimum of 5V to ensure reliable operation.
Yes, the TPIC8101DWRG4 can be used in applications with high-frequency switching, but it is recommended to follow proper layout and design guidelines to minimize electromagnetic interference (EMI) and ensure reliable operation. The device has a maximum switching frequency of 100 kHz.
To protect the TPIC8101DWRG4 from overvoltage and overcurrent conditions, it is recommended to use external protection devices such as voltage regulators, current limiters, and fuses. Additionally, the device has built-in overcurrent protection and thermal shutdown features to prevent damage from excessive current and temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPIC8101DWRG4 Overview

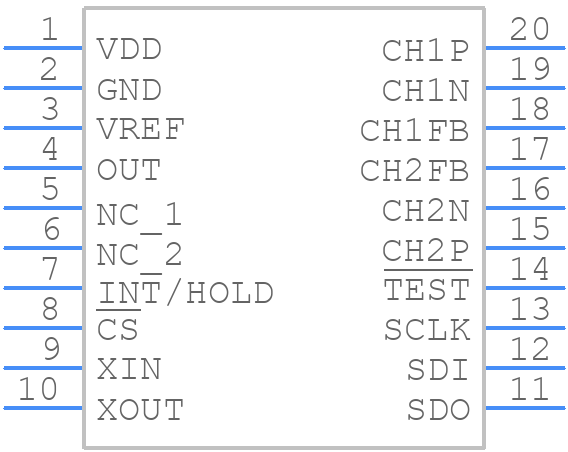

Use the download button to access the TPIC8101DWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPIC8,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
