Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable operation in high-temperature environments, it is recommended to follow the thermal design guidelines in the datasheet, use a heat sink if necessary, and consider using a thermistor or thermal sensor to monitor the device temperature.
The maximum allowable voltage on the input pins is specified in the datasheet as 5.5V, but it is recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the device.
To troubleshoot issues with the device not turning on or not functioning properly, check the power supply voltage, ensure proper pin connections, and verify that the input signals are within the specified voltage ranges. Also, check for any signs of physical damage or overheating.
Yes, the TPIC83000IPWRQ1 is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it is recommended to consult with Texas Instruments' technical support and review the device's qualification data to ensure it meets the specific requirements of your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPIC83000IPWRQ1 Overview

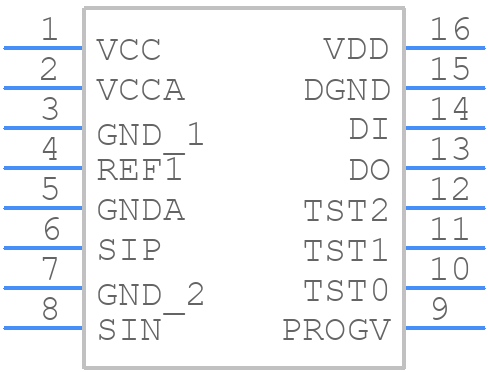

Use the download button to access the TPIC83000IPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPIC8,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
