TPL5000DGST - Texas Instruments

Description: Nano Power Programmable Timer with Watchdog Functionality

Download TPL5000DGST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

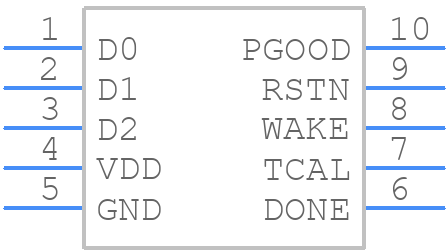

TPL5000DGST - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPL5000DGST - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
TPL5000DGST - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

TPL5000DGST Details

  • Manufacturer Part Number:

    TPL5000DGST

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    WATCHDOG TIMER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.00005 mA

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPL5000DGST Frequently Asked Questions (FAQs)

  • It's recommended to follow the layout guidelines provided in the datasheet, keeping the device close to the power source, and using a solid ground plane to minimize noise and EMI. Place decoupling capacitors close to the device and use a low-ESR capacitor for the input capacitor.
  • Ensure the input voltage is within the recommended range, use a suitable input capacitor, and follow the recommended PCB layout guidelines. Also, make sure to provide adequate heat sinking and thermal management to prevent overheating.
  • The TPL5000DGST can deliver up to 500mA of output current, but it's recommended to derate the output current based on the ambient temperature and the device's thermal performance.
  • The TPL5000DGST is rated for operation up to 125°C, but it's recommended to derate the output current and ensure proper heat sinking to prevent overheating. Consult the datasheet for thermal derating guidelines.
  • Check the input voltage, output load, and PCB layout for any issues. Verify that the device is properly soldered and that the thermal interface material is applied correctly. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet for troubleshooting guidelines.
