The recommended layout for the TPL5100DGST involves placing the device close to the battery, using short traces for the power connections, and separating the analog and digital grounds. A solid ground plane is also recommended to reduce noise and EMI.
The value of the timing resistor (RT) determines the timeout period of the device. The recommended value can be calculated using the formula provided in the datasheet, taking into account the desired timeout period and the capacitor value (CT). A higher value of RT results in a longer timeout period.
The internal voltage regulator in the TPL5100DGST generates a stable 3.3V supply for the internal circuitry, allowing the device to operate from a wide input voltage range. This regulator also helps to reduce power consumption and noise, ensuring reliable operation of the device.
The TPL5100DGST has an internal battery voltage monitor that compares the battery voltage to two internal thresholds: VBAT_LOW (typically 2.5V) and VBAT_DEAD (typically 2.2V). When the battery voltage falls below VBAT_LOW, the device asserts the BATT_LOW output, and when it falls below VBAT_DEAD, the device asserts the BATT_DEAD output.
The TPL5100DGST can sink or source up to 10mA of current on its output pins. This is sufficient for driving most logic-level inputs, but may not be enough for heavier loads. If the output current exceeds 10mA, the device may experience reduced reliability or even damage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPL5100DGST Overview

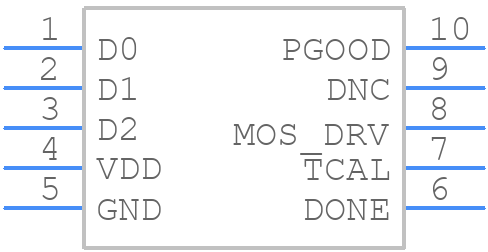

Use the download button to access the TPL5100DGST schematic symbol, PCB footprint, and 3D model.
