TPL5110QDDCRQ1 - Texas Instruments

Description: Ultra Low Power System Timer (35 nA) for Power Gating in Automotive Duty-cycled Applications

Download TPL5110QDDCRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

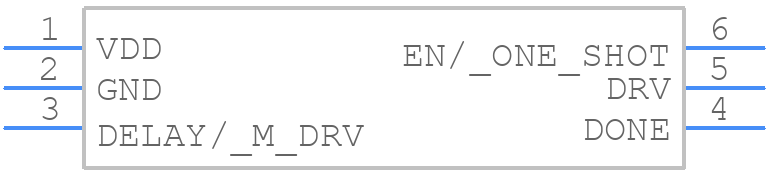

Symbol
TPL5110QDDCRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPL5110QDDCRQ1 - Texas Instruments PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TPL5110QDDCRQ1-1
click to zoom
3D Models
TPL5110QDDCRQ1 - Texas Instruments - 3D model - SOT23 (6-Pin) - TPL5110QDDCRQ1-1
click to zoom

TPL5110QDDCRQ1 Details

  • Manufacturer Part Number:

    TPL5110QDDCRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.00005 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TPL5110QDDCRQ1 Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TPL5110QDDCRQ1 involves keeping the device close to the battery, using a solid ground plane, and minimizing the length of the EN pin trace to reduce noise susceptibility.
  • To ensure the TPL5110QDDCRQ1 is properly powered down, connect the EN pin to a logic-low signal when the system is in shutdown mode, and ensure that the voltage on the VDD pin is less than 0.5V.
  • The maximum current that the TPL5110QDDCRQ1 can sink on the EN pin is 10mA, according to the datasheet.
  • Yes, the TPL5110QDDCRQ1 can be used with a rechargeable battery, but it's essential to ensure that the battery's charging circuitry is designed to handle the low quiescent current of the TPL5110QDDCRQ1.
  • The delay time between the EN pin going low and the device turning off can be calculated using the formula: tDELAY = (RDELAY * CDELAY) / 1.4, where RDELAY is the resistance on the DELAY pin and CDELAY is the capacitance on the DELAY pin.
