SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
5 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
7 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+3.75,4.25V
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPL9202PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPL9202PWP datasheet (Section 10.1) and in the TPL9202PWP Evaluation Module User's Guide. It's essential to follow these guidelines to minimize noise, ensure proper thermal dissipation, and optimize performance.
The input capacitor value depends on the input voltage, output voltage, and desired output ripple. A general guideline is to use a capacitor with a value between 1uF to 10uF, with a voltage rating at least 1.5 times the maximum input voltage. TI also provides a capacitor selection guide in the datasheet (Section 7.3.1).
The TPL9202PWP can deliver up to 2A of output current, but this depends on the input voltage, output voltage, and thermal conditions. It's essential to check the device's thermal derating and ensure proper heat sinking to maintain reliable operation.
The TPL9202PWP has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The datasheet (Section 7.3.4) provides a detailed explanation of the OCP implementation and calculation of the required resistor values.
The EN (Enable) pin is used to turn the device on or off. When the EN pin is pulled high (above 1.4V), the device is enabled, and when it's pulled low (below 0.4V), the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPL9202PWP Overview

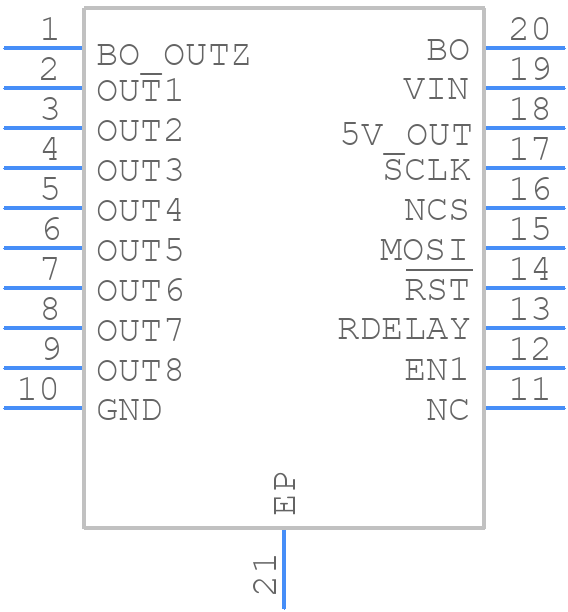

Use the download button to access the TPL9202PWP schematic symbol, PCB footprint, and 3D model.
