TPLD1201RWBR - Texas Instruments

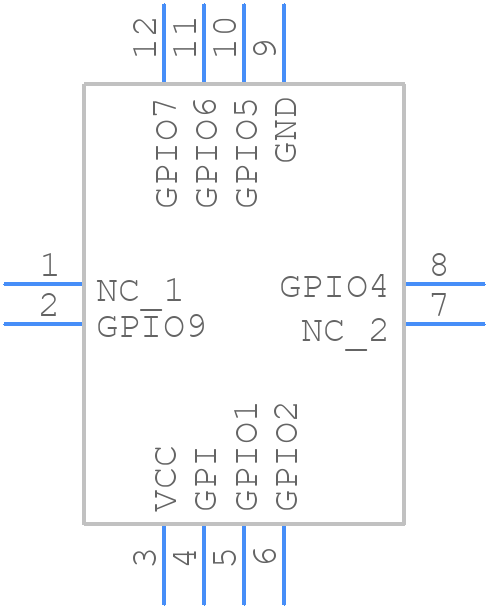

TPLD1201RWBR Details

• Manufacturer Part Number:

  TPLD1201RWBR

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  X2QFN-12

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Architecture:

  PAL-TYPE

• Clock Frequency-Max:

  12 MHz

• In-System Programmable:

  NO

• JESD-30 Code:

  S-PQCC-N12

• JTAG BST:

  NO

• Length:

  1.6 mm

• Moisture Sensitivity Level:

  1

• Number of Dedicated Inputs:

  1

• Number of I/O Lines:

  7

• Number of Inputs:

  8

• Number of Macro Cells:

  10

• Number of Outputs:

  7

• Number of Terminals:

  12

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  1 DEDICATED INPUTS, 7 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  XQCCN

• Package Equivalence Code:

  LCC12,.06SQ,16

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, EXTREMELY THIN PROFILE

• Packing Method:

  TR, 7 INCH

• Peak Reflow Temperature (Cel):

  260

• Programmable Logic Type:

  OT PLD

• Seated Height-Max:

  0.4 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  1.71 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  1.6 mm
