A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended for optimal thermal performance. The thermal pad should be connected to a large copper area to dissipate heat efficiently.
Ensure that the device is operated within the recommended temperature range (up to 125°C). Use a heat sink or thermal interface material to improve heat dissipation. Also, consider derating the device's power handling capability at high temperatures.
Handle the device with an anti-static wrist strap or mat to prevent ESD damage. The device has built-in ESD protection, but it's still important to follow proper handling and storage procedures to prevent damage.
Yes, the TPN1200APL,L1Q is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to meet specific industry standards or customer requirements.
Use a soldering temperature of 260°C (max) and a soldering time of 10 seconds (max) to prevent damage to the device. Follow the recommended soldering profile and use a solder with a melting point above 217°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPN1200APL,L1Q Overview

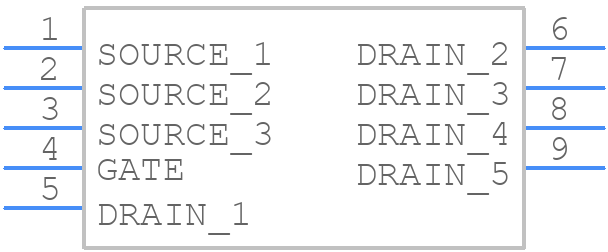

Use the download button to access the TPN1200APL,L1Q schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPN12,
or try a keyword search, such as Small Signal Field-Effect Transistors
