TPS1120DR - Texas Instruments

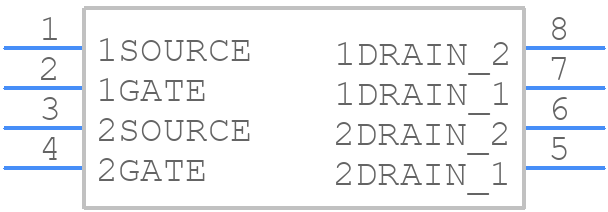

TPS1120DR Details

• Manufacturer Part Number:

  TPS1120DR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOIC

• Pin Count:

  8

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8541.21.00.95

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  LOGIC LEVEL COMPATIBLE, ESD PROTECTED

• Configuration:

  SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  15 V

• Drain Current-Max (ID):

  1.17 A

• Drain-source On Resistance-Max:

  0.4 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• JEDEC-95 Code:

  MS-012AA

• JESD-30 Code:

  R-PDSO-G8

• JESD-609 Code:

  e4

• Moisture Sensitivity Level:

  1

• Number of Elements:

  2

• Number of Terminals:

  8

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  P-CHANNEL

• Power Dissipation-Max (Abs):

  0.84 W

• Qualification Status:

  Not Qualified

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
