Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and ripple current. A general guideline is to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The datasheet provides more detailed guidance on capacitor selection.
The TPS16410DRCR has an operating ambient temperature range of -40°C to 85°C. However, the device can operate up to 125°C with derating. It's essential to ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
Proper thermal management is crucial for the TPS16410DRCR. Ensure that the device is mounted on a PCB with a solid ground plane, and use thermal vias to connect the device to the ground plane. Additionally, use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device.
The recommended input voltage range for the TPS16410DRCR is 2.7V to 5.5V. However, the device can operate with an input voltage as low as 2.3V, but with reduced performance and efficiency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS16410DRCR Overview

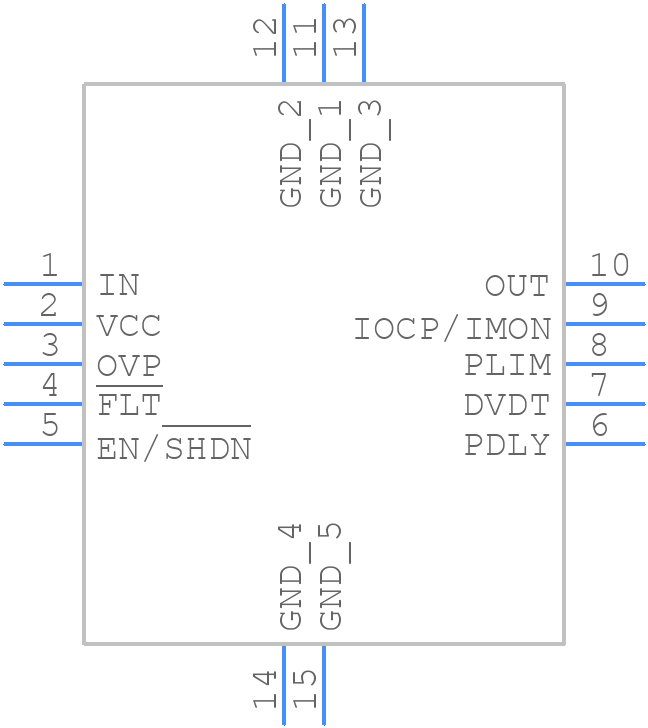

Use the download button to access the TPS16410DRCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS16,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
