TPS16412DRCR - Texas Instruments

Description: Power Management Specialized - PMIC 2.7-V to 40-V, 152-mohm, 1.8-A eFuse with output power limiting 10-VSON -40 to 125

Download TPS16412DRCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

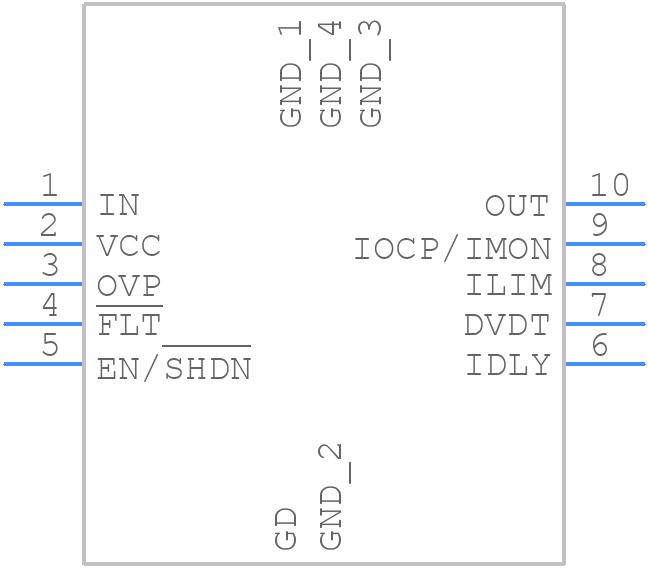

TPS16412DRCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS16412DRCR - Texas Instruments PCB footprint - Other - Other - DRC0010J(H=1mm)
click to zoom
3D Models
TPS16412DRCR - Texas Instruments - 3D model - Other - DRC0010J(H=1mm)
click to zoom

TPS16412DRCR Details

  • Manufacturer Part Number:

    TPS16412DRCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.53V

  • Width:

    3 mm

TPS16412DRCR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS16412DRCR is 5.5V, as specified in the datasheet. However, it's recommended to keep the input voltage below 5V to ensure reliable operation and prevent damage to the device.
  • To ensure proper configuration, carefully review the datasheet and application notes. Pay attention to the pin connections, voltage levels, and current requirements. Additionally, consider using the TI Power Designer software to simulate and optimize your design.
  • The typical startup time for the TPS16412DRCR is around 10ms to 20ms, depending on the input voltage and output capacitance. This can vary depending on the specific application and design.
  • The TPS16412DRCR is rated for operation up to 125°C (TJ). However, it's essential to consider the thermal design and ensure proper heat dissipation to prevent overheating and ensure reliable operation.
  • To troubleshoot issues, start by reviewing the datasheet and application notes. Check the input voltage, output voltage, and current levels. Verify that the device is properly configured and that the input and output capacitors are correctly sized. Use oscilloscopes or other diagnostic tools to analyze the waveforms and identify the root cause of the issue.
