TPS16413DRCR - Texas Instruments

Description: Power Management Specialized - PMIC 2.7-V to 40-V, 152-mohm, 1.8-A eFuse with output power limiting 10-VSON -40 to 125

Download TPS16413DRCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

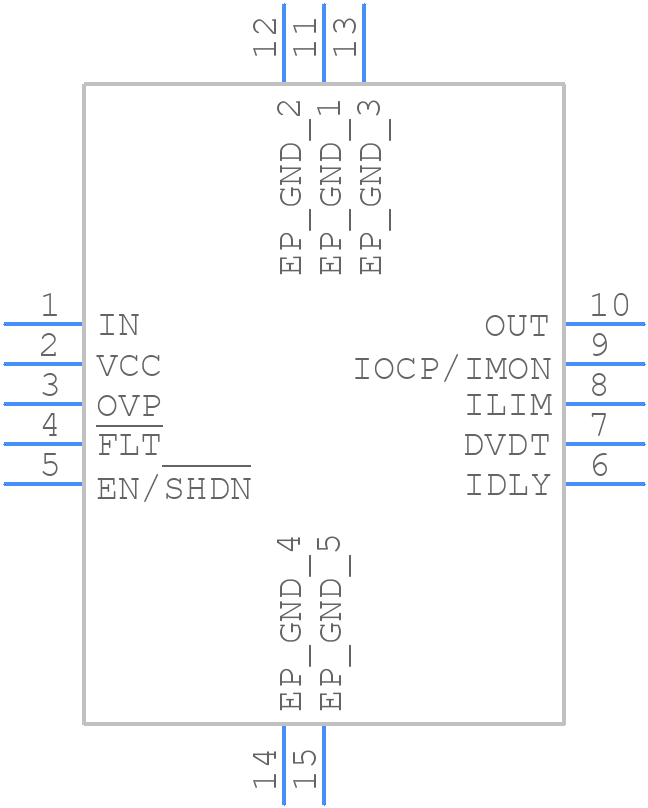

TPS16413DRCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS16413DRCR - Texas Instruments PCB footprint - Other - Other - DRC0010J
click to zoom
3D Models
TPS16413DRCR - Texas Instruments - 3D model - Other - DRC0010J
click to zoom

TPS16413DRCR Details

  • Manufacturer Part Number:

    TPS16413DRCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.53V

  • Width:

    3 mm

TPS16413DRCR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS16413DRCR is 18V, but it's recommended to operate within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
  • To ensure stability, make sure to follow the recommended layout and component selection guidelines in the datasheet, including the use of a suitable output capacitor and input filter components. Additionally, ensure that the input voltage is within the specified range and the output current is within the recommended limits.
  • The TPS16413DRCR is a high-current DC-DC converter, and it can deliver a minimum output current of 0.5A. However, the actual minimum output current may vary depending on the input voltage, output voltage, and other operating conditions.
  • The TPS16413DRCR is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation. Consult the datasheet for specific derating guidelines.
  • The TPS16413DRCR has a SYNC pin that allows synchronization of the switching frequency with an external clock signal. Connect the SYNC pins of multiple devices to a common clock signal to synchronize their switching frequencies.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS16413DRCR Overview

Use the download button to access the TPS16413DRCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS16, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
