Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and ripple current. A general guideline is to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. It's also recommended to follow the capacitor selection guidelines provided in the datasheet.
The maximum ambient temperature range for the TPS16416DRCR is -40°C to 125°C, but the device can operate up to 150°C with derating. It's recommended to follow the thermal design guidelines provided in the datasheet to ensure reliable operation.
To troubleshoot issues with the TPS16416DRCR, it's recommended to follow a systematic approach, such as checking the input voltage, output voltage, and current, as well as the PCB layout and component selection. Texas Instruments also provides a troubleshooting guide in the datasheet and application notes.
Yes, the TPS16416DRCR is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's recommended to follow the specific requirements and guidelines for the target application, and to consult with Texas Instruments' technical support team if necessary.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS16416DRCR Overview

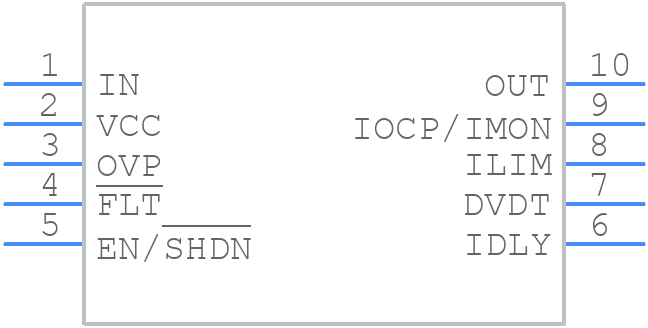

Use the download button to access the TPS16416DRCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS16,
or try a keyword search, such as Power Management Circuits
