SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
60 V
Supply Voltage-Min (Vsup):
4.5 V
Supply Voltage-Nom (Vsup):
24 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS16630PWPT Frequently Asked Questions (FAQs)
The maximum operating temperature range for the TPS16630PWPT is -40°C to 125°C.
To ensure proper power-up and configuration, follow the recommended power-up sequence, connect the EN pin to a valid logic level, and configure the MODE pin according to the desired operating mode.
To minimize noise and ensure proper operation, follow Texas Instruments' recommended PCB layout guidelines, including using a solid ground plane, placing decoupling capacitors close to the device, and minimizing trace lengths.
To troubleshoot issues, check the input voltage, output voltage, and current levels, and verify that the device is properly configured and powered. Also, review the datasheet and application notes for guidance on troubleshooting common issues.
Yes, the TPS16630PWPT is designed for high-reliability applications and meets various safety and regulatory standards, including AEC-Q100 and IEC 61508. However, it is essential to follow proper design and validation procedures to ensure the device meets the specific requirements of your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS16630PWPT Overview

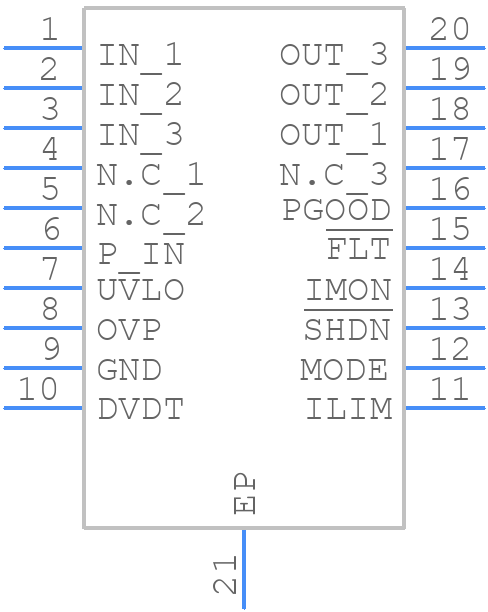

Use the download button to access the TPS16630PWPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS16,
or try a keyword search, such as Power Management Circuits
