A good PCB layout for the TPS16630RGER involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a shielded inductor and to keep the switching node (SW) away from sensitive analog circuits.
The inductor value and type depend on the specific application requirements, such as output voltage, current, and switching frequency. A good starting point is to use the inductor selection guide provided in the datasheet, and then fine-tune the selection based on the specific application requirements. It's also recommended to consider the inductor's DC resistance, core material, and saturation current.
The TPS16630RGER is rated for an ambient temperature range of -40°C to 125°C. Operating the device outside this range can affect its performance, including reduced efficiency, increased power losses, and potential damage to the device. It's essential to ensure proper thermal management and heat sinking to maintain the device within its recommended operating temperature range.
The TPS16630RGER has a built-in overcurrent protection (OCP) feature that can be enabled by connecting the OCP pin to a resistor divider network. The OCP threshold can be set by adjusting the resistor values. For short-circuit protection (SCP), an external circuit can be implemented using a sense resistor and a comparator to detect overcurrent conditions and shut down the device if necessary.
When selecting input and output capacitors for the TPS16630RGER, consider the capacitor's voltage rating, capacitance value, equivalent series resistance (ESR), and ripple current rating. The input capacitor should be able to handle the input voltage and ripple current, while the output capacitor should be able to handle the output voltage and ripple current. It's also essential to consider the capacitor's temperature rating and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS16630RGER Overview

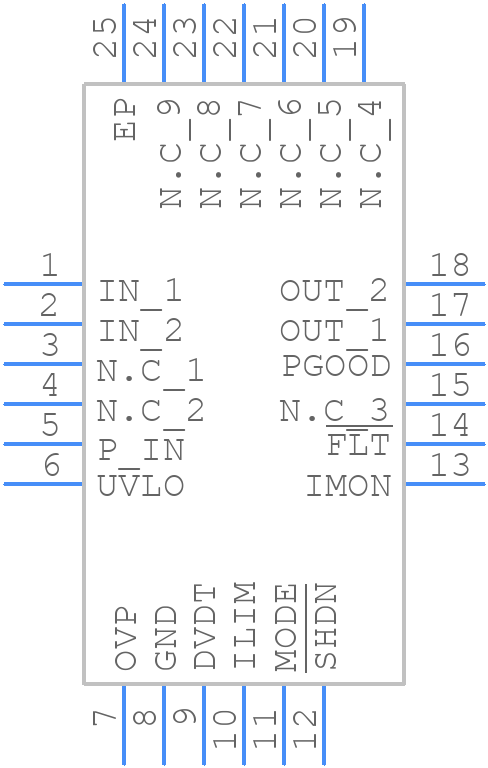

Use the download button to access the TPS16630RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS16,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
