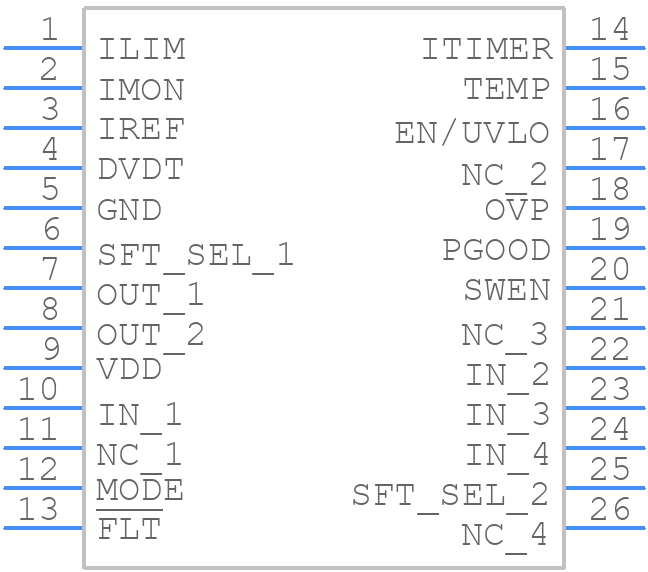

TPS16850VMAR - Texas Instruments

TPS16850VMAR Details

• Manufacturer Part Number:

  TPS16850VMAR

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Additional Feature:

  CURRENT LIMIT:20A

• Adjustable Threshold:

  YES

• Analog IC - Other Type:

  eFUSE

• Input Voltage-Max:

  80 V

• Input Voltage-Min:

  9 V

• JESD-30 Code:

  R-PQCC-N23

• Length:

  6 mm

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  23

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  20 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLQCCN

• Package Equivalence Code:

  LCC23,.2x.24,20

• Package Shape:

  RECTANGULAR

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, LOW PROFILE

• Seated Height-Max:

  1.5 mm

• Supply Voltage-Max (Vsup):

  80 V

• Supply Voltage-Min (Vsup):

  9 V

• Supply Voltage-Nom (Vsup):

  50 V

• Surface Mount:

  YES

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Threshold Voltage-Nom:

  +1.12V

• Width:

  5 mm
