TPS1HC30BQPWPRQ1 - Texas Instruments

Description: Power Switch ICs - Power Distribution Automotive, 30-mO, 5-A single-channel smart high-side switch 14-HTSSOP -40 to 125

Download TPS1HC30BQPWPRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

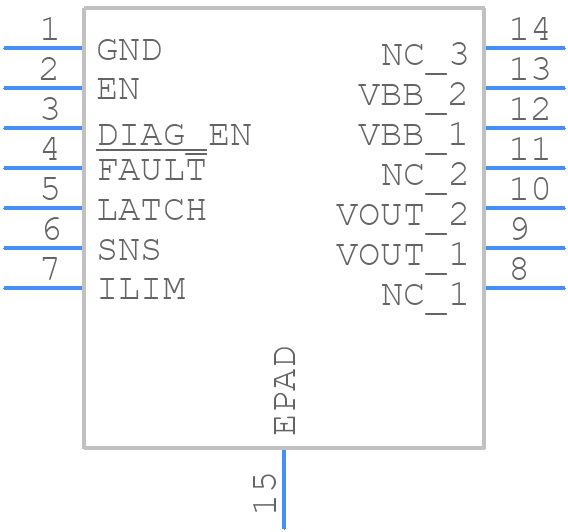

Symbol
TPS1HC30BQPWPRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS1HC30BQPWPRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G14)_11
click to zoom
3D Models
TPS1HC30BQPWPRQ1 - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G14)_11
click to zoom

TPS1HC30BQPWPRQ1 Details

  • Manufacturer Part Number:

    TPS1HC30BQPWPRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP-14

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Current Limit:3.5A;Thermal Shutdown:165C;Adjustable Current Limit

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    Load Switch

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    12 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.6V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS1HC30BQPWPRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a thermal pad layout with a minimum of 2 oz copper thickness, and a thermal via array with a minimum of 10 vias under the package to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and consider derating the device's power dissipation according to the ambient temperature.
  • The maximum allowed voltage on the input pins is 6V, which is higher than the recommended operating voltage of 5.5V. However, it's essential to ensure that the input voltage does not exceed 6V to prevent damage to the device.
  • Yes, the TPS1HC30BQPWPRQ1 is qualified for automotive and high-reliability applications, meeting the requirements of the AEC-Q100 standard. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific application requirements.
  • To ensure proper operation, it's recommended to power up the device's input voltage (VIN) before the enable pin (EN), and power down the enable pin before the input voltage. This sequencing helps prevent unwanted device behavior and ensures reliable operation.
