TPS1HTC100QPWPRQ1 footprint, schematic symbol and 3D model by Texas Instruments

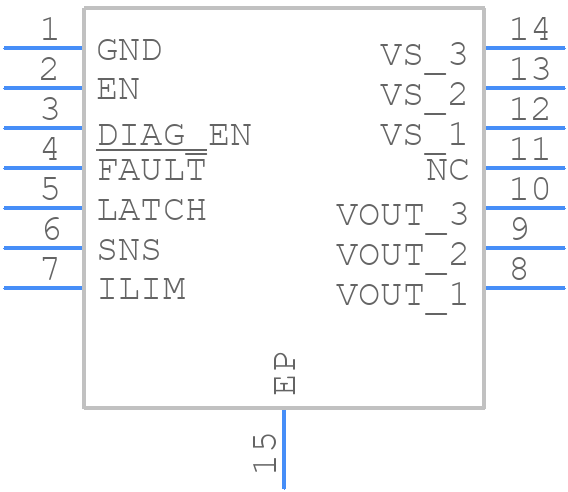

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for TPS1HTC100QPWPRQ1
Part Number TPS1HTC100QPWPRQ1
Manufacturer Texas Instruments
Pin Count 15
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - PWP0014J
Released Date Jul 27, 2024
Last Modified Date Jul 27, 2024 3:03 AM UTC
Pinout / Pin List Click Here (Member Only)

TPS1HTC100QPWPRQ1 Details

Manufacturer Part Number:
TPS1HTC100QPWPRQ1
Brand Name:
Texas Instruments
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.90
Manufacturer:
Texas Instruments
YTEOL:
15
Adjustable Threshold:
YES
Analog IC - Other Type:
LOAD SWITCH
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
3
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
7.5 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
60 V
Supply Voltage-Min (Vsup):
6 V
Supply Voltage-Nom (Vsup):
24 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
4.5
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm

TPS1HTC100QPWPRQ1 Frequently Asked Questions (FAQs)

Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal conductivity. A minimum of 2 oz copper thickness is recommended for the top layer.
To ensure the device operates within the SOA, monitor the junction temperature (TJ) and ensure it does not exceed 150°C. Also, keep the voltage and current within the recommended operating ranges, and use a suitable heat sink if necessary.
A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for input decoupling, placed as close to the VIN pin as possible. This helps to filter out noise and ensure stable operation.
Yes, the TPS1HTC100QPWPRQ1 is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed to operate in harsh environments. However, additional testing and validation may be required for specific applications.
The enable pin (EN) should be pulled low during power-up and power-down sequences to prevent unwanted switching. Once the input voltage is stable, the EN pin can be pulled high to enable the device.
