TPS2000CDGK - Texas Instruments

Description: Power Switch ICs - Power Distribution Sgl Channel,Crnt-Ltd USB Pwr Dist Switch

Download TPS2000CDGK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

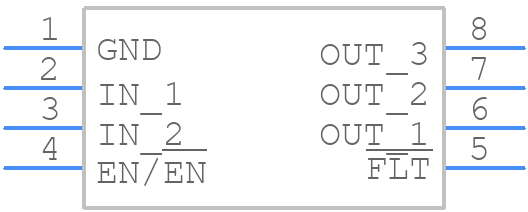

TPS2000CDGK - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2000CDGK - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
TPS2000CDGK - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

TPS2000CDGK Details

  • Manufacturer Part Number:

    TPS2000CDGK

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.085 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    1.45

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2000CDGK Frequently Asked Questions (FAQs)

  • The maximum current that can be drawn from the output of the TPS2000CDGK is 2A, but it's recommended to limit it to 1.5A for continuous operation to ensure reliability and prevent overheating.
  • To ensure stability, make sure to follow the recommended layout and component placement guidelines, use a sufficient output capacitor (at least 10uF), and add a 10nF-100nF capacitor between the VIN and EN pins to filter noise.
  • The TPS2000CDGK is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • The output voltage of the TPS2000CDGK can be programmed using an external resistor divider network between the VOUT and ADJ pins. The output voltage is determined by the ratio of the resistors and the internal reference voltage (1.22V).
  • The TPS2000CDGK can operate with input voltages between 2.7V and 5.5V, but it's recommended to ensure the input voltage is within the specified range for the desired output voltage and current.
