SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max (Isup):
0.07 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS2041BDGNG4 Frequently Asked Questions (FAQs)
The maximum operating temperature range for the TPS2041BDGNG4 is -40°C to 125°C.
To ensure proper power-up and configuration, follow the recommended power-up sequence and configuration guidelines in the datasheet, and make sure to meet the minimum input voltage and current requirements.
For optimal performance and thermal management, follow the recommended PCB layout guidelines in the datasheet, and ensure good thermal conductivity and heat dissipation through the use of thermal vias, heat sinks, and proper airflow.
To troubleshoot issues, refer to the datasheet's troubleshooting section, and use tools such as oscilloscopes and logic analyzers to monitor the device's behavior. Also, check for proper power supply, PCB layout, and thermal management.
Yes, the TPS2041BDGNG4 is designed for high-reliability and safety-critical applications, but it's essential to follow the recommended design and testing guidelines, and to consult with Texas Instruments' application engineers for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2041BDGNG4 Overview

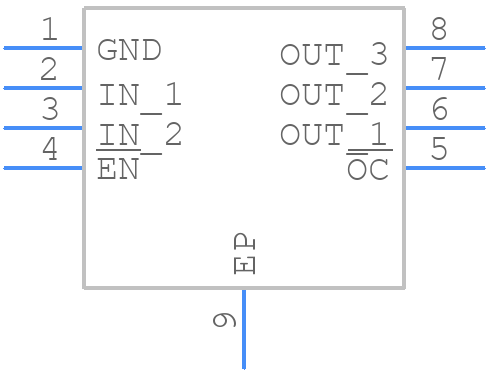

Use the download button to access the TPS2041BDGNG4 schematic symbol, PCB footprint, and 3D model.
