SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max (Isup):
0.09 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS2042BDGNRG4 Frequently Asked Questions (FAQs)
The maximum operating temperature range for the TPS2042BDGNRG4 is -40°C to 125°C.
To ensure proper power-up and configuration, follow the recommended power-up sequence, connect the EN pin to a valid logic level, and configure the MODE pin according to the desired operating mode (e.g., auto-switch or manual-switch).
For optimal performance and thermal management, follow Texas Instruments' recommended PCB layout guidelines, including using a solid ground plane, minimizing trace lengths, and providing adequate thermal vias and heat sinks.
The TPS2042BDGNRG4 has built-in overcurrent protection and fault detection features. Use the FLAG pin to monitor fault conditions, and implement external circuitry to respond to fault events, such as resetting the device or disconnecting the load.
The TPS2042BDGNRG4 has a higher current rating (4A vs 2A) and a lower RDS(on) (35mΩ vs 50mΩ) compared to the TPS2041. Additionally, the TPS2042BDGNRG4 has a more comprehensive set of protection features, including overcurrent, overvoltage, and undervoltage protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2042BDGNRG4 Overview

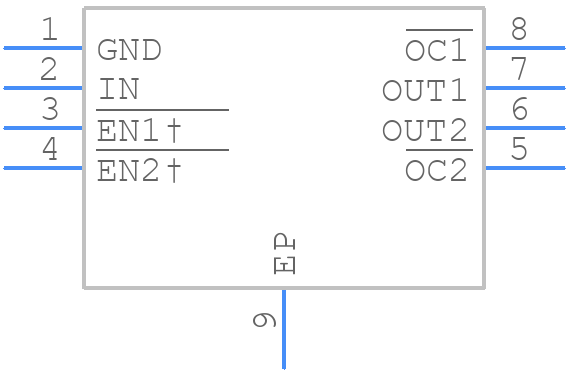

Use the download button to access the TPS2042BDGNRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20,
or try a keyword search, such as Power Management Circuits
