The maximum current rating of the TPS2051AD is 1A per channel, with a total current limit of 2A for both channels combined.
To ensure safe operation in high-temperature environments, ensure that the device is properly heatsinked, and the junction temperature (TJ) does not exceed 150°C. Also, derate the current output accordingly based on the ambient temperature.
The EN pin is an active-high enable input that allows the user to turn the device on or off. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power-saving modes or to turn the device on/off based on system requirements.
The TPS2051AD has built-in OCP and SCP features. When an overcurrent condition is detected, the device will limit the current to prevent damage. In the event of a short circuit, the device will shut down to prevent damage. Ensure that your design can handle these fault conditions and provide adequate protection to prevent damage to the device or surrounding components.
To ensure proper operation and minimize electromagnetic interference (EMI), follow good PCB design practices, such as keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Also, ensure that the thermal pad is properly connected to a heat sink or a thermal relief pattern.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS2051AD Overview

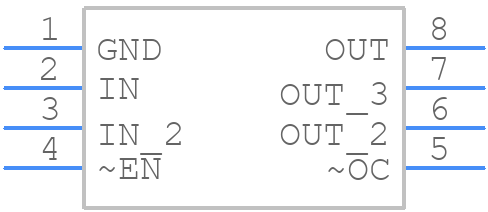

Use the download button to access the TPS2051AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
