TPS2051D - Texas Instruments

Description: Power Switch ICs - Power Distribution 0.7A 2.7-5.5V Hi

Download TPS2051D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

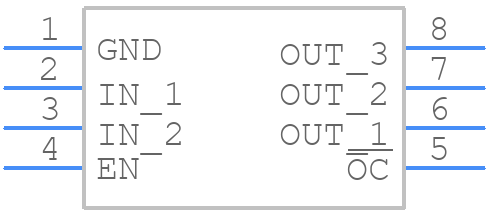

TPS2051D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2051D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
TPS2051D - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

TPS2051D Details

  • Manufacturer Part Number:

    TPS2051D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    1998-10-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

TPS2051D Frequently Asked Questions (FAQs)

  • The maximum current rating of the TPS2051D is 1A per channel, with a total current limit of 2A for both channels combined.
  • To ensure safe operation in high-temperature environments, make sure to follow the recommended thermal design guidelines, including proper heat sinking and thermal management. Additionally, ensure that the device is operated within the recommended operating temperature range of -40°C to 85°C.
  • The EN (enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it is low, the device is disabled. This pin can be used to control the power consumption of the device.
  • The TPS2051D can be configured for high-side or low-side switching by connecting the VIN pin to the drain of an external N-channel MOSFET for high-side switching, or to the source of an external P-channel MOSFET for low-side switching.
  • The FLT (fault) pin is an open-drain output that indicates when a fault condition occurs, such as overcurrent, undervoltage, or overtemperature. This pin can be used to trigger an interrupt or to signal a fault condition to a microcontroller or other external circuitry.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2051D Overview

Use the download button to access the TPS2051D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20, or try a keyword search, such as Power Management Circuits
