TPS2052BDRBT - Texas Instruments

Description: Texas Instruments TPS2052BDRBT, Dual Digital Power Switch IC, Power Distribution, 500mA, 2.7 → 5.5V, 1600mW

Download TPS2052BDRBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

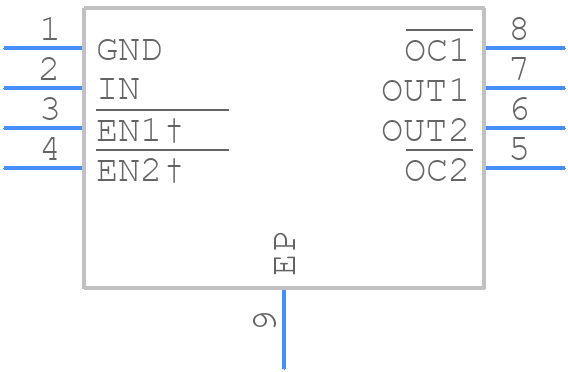

TPS2052BDRBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2052BDRBT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008B_01
click to zoom
3D Models
TPS2052BDRBT - Texas Instruments - 3D model - Small Outline No-lead - DRB0008B_01
click to zoom

TPS2052BDRBT Details

  • Manufacturer Part Number:

    TPS2052BDRBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    UNDERVOLTAGE LOCKOUT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.09 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2052BDRBT Frequently Asked Questions (FAQs)

  • The maximum current rating of the TPS2052BDRBT is 2A per channel, with a total current limit of 4A for both channels combined.
  • To ensure safe operation in high-temperature environments, ensure that the device is properly heatsinked, and the junction temperature (TJ) does not exceed 150°C. Also, follow the recommended PCB layout and thermal design guidelines.
  • The EN (enable) pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. Connect EN to a logic high (e.g., VCC) to enable the device, or connect it to a logic low (e.g., GND) to disable it.
  • The TPS2052BDRBT has built-in OCP and SCP features. When an overcurrent or short-circuit condition is detected, the device will limit the current or shut down to prevent damage. Ensure that your design can handle the fault current and voltage during these events.
  • The recommended input capacitor value is 1 μF to 10 μF, with a voltage rating of at least 6.3 V. A ceramic or X5R/X7R dielectric capacitor is recommended due to its low ESR and high reliability.
