The maximum current rating of the TPS2052D is 2A per channel, with a total current limit of 4A for both channels combined.
To ensure safe operation in high-temperature environments, ensure that the device is properly heatsinked, and the junction temperature (TJ) does not exceed 150°C. Also, derate the current output accordingly based on the ambient temperature.
The EN pin is an active-high enable input that allows the device to be turned on or off. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power-saving modes or to control the device's operation based on system requirements.
The TPS2052D has built-in OCP and SCP features. When an overcurrent condition is detected, the device will limit the current to prevent damage. In the event of a short circuit, the device will shut down to prevent damage. Ensure that your design takes into account these protection features and provides adequate thermal design to prevent overheating.
To ensure optimal performance and minimize electromagnetic interference (EMI), follow good PCB design practices, such as keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Also, ensure that the thermal pad is properly connected to a thermal plane or heat sink.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2052D Overview

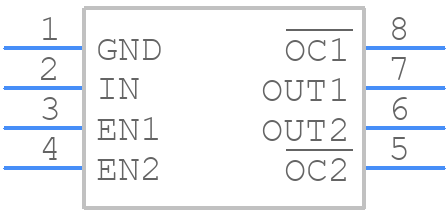

Use the download button to access the TPS2052D schematic symbol, PCB footprint, and 3D model.
