TPS2052DG4 - Texas Instruments

Description: Power Switch ICs - Power Distribution DUAL HI-SIDE MOSFET

Download TPS2052DG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

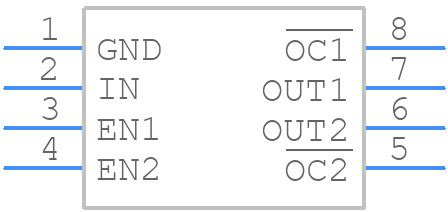

Symbol
TPS2052DG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2052DG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
TPS2052DG4 - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

TPS2052DG4 Details

  • Manufacturer Part Number:

    TPS2052DG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    LOAD SWITCH

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.899 mm

TPS2052DG4 Frequently Asked Questions (FAQs)

  • The TPS2052DG4 has a maximum current limit of 1A per channel, but it's recommended to limit the current to 0.5A per channel for reliable operation and to prevent overheating.
  • To ensure proper thermal management, provide a heat sink or a thermal pad on the exposed pad of the device, and ensure good airflow around the device. The thermal resistance of the device is 30°C/W, so it's essential to keep the junction temperature below 125°C.
  • The EN (enable) pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. You can use the EN pin to turn the device on or off, or to implement a power-saving mode in your design.
  • The TPS2052DG4 has built-in OVP and UVP. The device will automatically shut down if the input voltage exceeds 6.5V or falls below 2.5V. You can also use external resistors to adjust the OVP and UVP thresholds to suit your specific application requirements.
  • The recommended input capacitor value is 1uF to 10uF, and the type should be a low-ESR ceramic capacitor. This capacitor helps to filter out noise and ripple on the input voltage and ensures stable operation of the device.
