TPS2061CDGNR - Texas Instruments

Description: Single Channel, Current-Limited USB Power Distribution Switch

Download TPS2061CDGNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

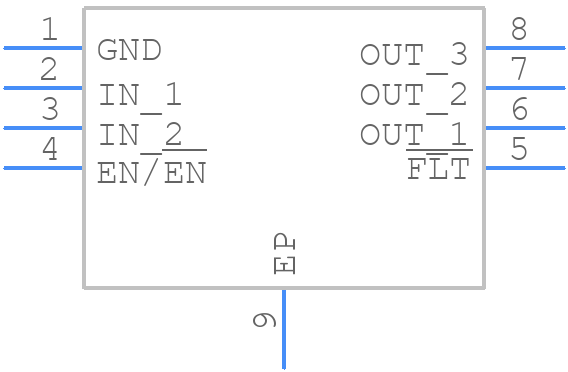

TPS2061CDGNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2061CDGNR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN(S-PDSO-G8)
click to zoom
3D Models
TPS2061CDGNR - Texas Instruments - 3D model - Small Outline Packages - DGN(S-PDSO-G8)
click to zoom

TPS2061CDGNR Details

  • Manufacturer Part Number:

    TPS2061CDGNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2061CDGNR Frequently Asked Questions (FAQs)

  • The maximum capacitance depends on the application and the desired performance. However, as a general guideline, TI recommends using capacitors with a capacitance value of 10uF or less to ensure stability and optimal performance.
  • To ensure stability, follow the layout guidelines in the datasheet, use a low-ESR capacitor, and add a 1-2uF ceramic capacitor in parallel with the output capacitor. Additionally, ensure the input voltage is within the recommended range and the output current is within the specified limits.
  • The minimum input voltage required for the TPS2061CDGNR to operate is 2.7V. However, the recommended input voltage range is 3.0V to 5.5V for optimal performance.
  • The TPS2061CDGNR is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. If your application requires operation above 85°C, consider using a different device or taking additional thermal management measures.
  • The output voltage of the TPS2061CDGNR is adjustable using the FB (feedback) pin. The output voltage is calculated using the formula: Vout = 1.22V x (R1/R2) + 0.6V, where R1 and R2 are the resistors connected to the FB pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2061CDGNR Overview

Use the download button to access the TPS2061CDGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
