SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Supply Current-Max (Isup):
0.0005 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS2061DGNG4 Frequently Asked Questions (FAQs)
The maximum input voltage is 5.5V, but it's recommended to keep it below 5V to ensure reliable operation and prevent damage to the device.
The output capacitor value depends on the output voltage, output current, and desired ripple voltage. A general guideline is to use a capacitor with a value between 1uF to 10uF, with a voltage rating of at least 2x the output voltage. For example, for a 3.3V output, use a 4.7uF or 10uF capacitor with a 6.3V or higher voltage rating.
The EN pin is used to enable or disable the output voltage. When the EN pin is pulled high (above 1.4V), the output voltage is enabled. When the EN pin is pulled low (below 0.4V), the output voltage is disabled, and the device enters a low-power shutdown mode.
While the TPS2061DGNG4 can handle high currents, it's not designed as a high-current switch. The device is intended for low-dropout linear voltage regulation applications. If you need a high-current switch, consider using a dedicated high-current switch IC or a power MOSFET.
To minimize noise and ensure reliable operation, follow these guidelines: 1) Keep the input and output capacitors close to the device. 2) Use a solid ground plane and a separate power plane. 3) Keep the EN pin trace short and away from noisy signals. 4) Use a low-ESR output capacitor. 5) Avoid routing high-frequency signals near the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2061DGNG4 Overview

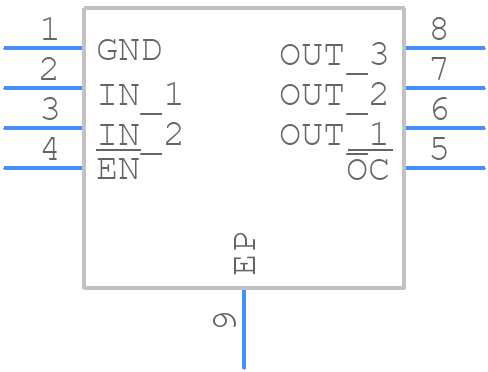

Use the download button to access the TPS2061DGNG4 schematic symbol, PCB footprint, and 3D model.
