TPS2061DGNR - Texas Instruments

Description: Single 1A Current-Limited, Power-Distribution Switch

Download TPS2061DGNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

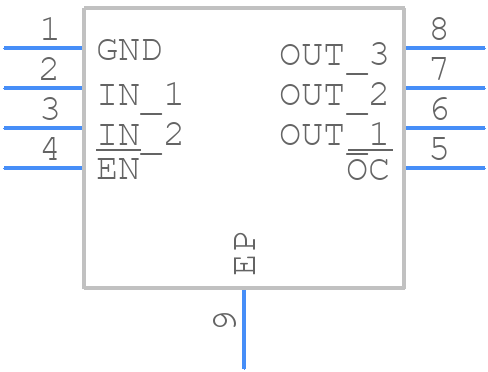

TPS2061DGNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2061DGNR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN (S-PDSO-G8)
click to zoom
3D Models
TPS2061DGNR - Texas Instruments - 3D model - Small Outline Packages - DGN (S-PDSO-G8)
click to zoom

TPS2061DGNR Details

  • Manufacturer Part Number:

    TPS2061DGNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    UNDERVOLTAGE LOCKOUT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Supply Current-Max (Isup):

    0.07 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2061DGNR Frequently Asked Questions (FAQs)

  • The TPS2061DGNR can handle a maximum current of 2A, but it's recommended to limit the current to 1.5A for continuous operation to ensure reliable performance and prevent overheating.
  • To ensure proper thermal management, it's recommended to provide a heat sink or a thermal pad on the exposed pad of the device, and to keep the ambient temperature below 85°C. Additionally, ensure good airflow around the device and avoid blocking the airflow.
  • The EN (enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. You can use the EN pin to turn the device on and off, or to implement power-saving modes.
  • The output capacitor should be chosen based on the output voltage and current requirements. A general rule of thumb is to use a capacitor with a value of at least 10uF, and a voltage rating of at least 1.5 times the output voltage. Additionally, consider the ESR (equivalent series resistance) and ESL (equivalent series inductance) of the capacitor when selecting the right one for your application.
  • The minimum input voltage required for the TPS2061DGNR is 2.7V, but it's recommended to use an input voltage of at least 3V to ensure reliable operation.
