TPS2062ADRBT - Texas Instruments

Description: USB Power SW Hi Side/DIST Dual 5.5V 1.6A 8-Pin VSON EP T/R

Download TPS2062ADRBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

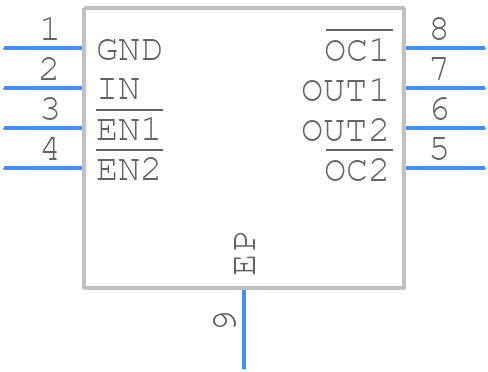

Symbol
TPS2062ADRBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2062ADRBT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008B
click to zoom
3D Models
TPS2062ADRBT - Texas Instruments - 3D model - Small Outline No-lead - DRB0008B
click to zoom

TPS2062ADRBT Details

  • Manufacturer Part Number:

    TPS2062ADRBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.09 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2062ADRBT Frequently Asked Questions (FAQs)

  • The maximum current that can be drawn from the output of the TPS2062ADRBT is 2A, but it's recommended to limit the output current to 1.5A for reliable operation and to prevent overheating.
  • To ensure proper thermal management, it's recommended to provide a thermal pad on the PCB, use a heat sink if necessary, and keep the device away from other heat sources. The thermal pad should be connected to a copper plane on the PCB to dissipate heat efficiently.
  • The EN (enable) pin is used to turn the device on or off. When the EN pin is high, the device is enabled and the output voltage is regulated. When the EN pin is low, the device is disabled and the output voltage is turned off.
  • The TPS2062ADRBT is rated for operation up to 125°C, but it's recommended to derate the output current and voltage as the temperature increases to prevent overheating and ensure reliable operation.
  • The input capacitor should be chosen based on the input voltage ripple, output current, and operating frequency. A minimum of 10uF ceramic capacitor is recommended, but a larger capacitor may be required for high-input voltage or high-output current applications.
