TPS2062D-1 - Texas Instruments

Description: Current-Limited, Power-Distribution Switches with Output Discharge resistor

Download TPS2062D-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

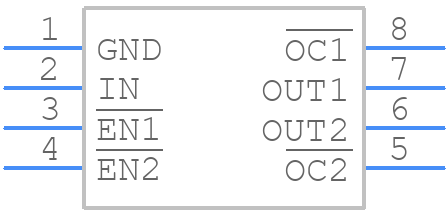

TPS2062D-1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2062D-1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D(R-PDSO-G)
click to zoom
3D Models
TPS2062D-1 - Texas Instruments - 3D model - Small Outline Packages - D(R-PDSO-G)
click to zoom

TPS2062D-1 Details

  • Manufacturer Part Number:

    TPS2062D-1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TPS2062D-1 Frequently Asked Questions (FAQs)

  • The maximum current that can be drawn from the output of the TPS2062D-1 is 2A, but it's recommended to limit the output current to 1.5A for reliable operation and to prevent overheating.
  • To ensure proper thermal management, it's recommended to provide a heat sink or a thermal pad on the exposed pad of the device, and to keep the ambient temperature below 85°C. Additionally, the device should be placed on a multi-layer PCB with good thermal conductivity.
  • The minimum input voltage required for the TPS2062D-1 to operate is 2.7V, but it's recommended to use an input voltage of at least 3V to ensure reliable operation and to prevent undervoltage lockout (UVLO).
  • The output voltage of the TPS2062D-1 can be adjusted by using an external resistor divider network between the output and the ADJ pin. The output voltage can be calculated using the formula: Vout = 1.285V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The EN (enable) pin on the TPS2062D-1 is used to enable or disable the device. When the EN pin is pulled high, the device is enabled and the output voltage is regulated. When the EN pin is pulled low, the device is disabled and the output voltage is turned off.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2062D-1 Overview

Use the download button to access the TPS2062D-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
