The maximum current that can be drawn from the output of the TPS2062DRG4 is 2A, but it's recommended to limit the current to 1.5A for continuous operation to ensure reliable performance and to prevent overheating.
To ensure proper thermal management, it's recommended to provide a heat sink or a thermal pad on the exposed pad of the QFN package, and to keep the ambient temperature below 85°C. Additionally, ensure that the PCB layout provides good thermal conductivity and that the device is not exposed to high temperatures during operation.
The recommended input capacitor value is 10uF to 22uF, and it's recommended to use a low-ESR ceramic capacitor, such as an X5R or X7R type, to minimize voltage ripple and ensure stable operation.
While the TPS2062DRG4 can operate up to 125°C, it's not recommended to use it in high-temperature environments above 85°C for continuous operation. If high-temperature operation is required, consider using a different device or taking additional thermal management measures.
To prevent overvoltage on the output, it's recommended to add an overvoltage protection (OVP) circuit, such as a zener diode or a dedicated OVP IC, to clamp the output voltage to a safe level. Additionally, ensure that the input voltage is within the recommended range and that the device is not subjected to voltage spikes or transients.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2062DRG4 Overview

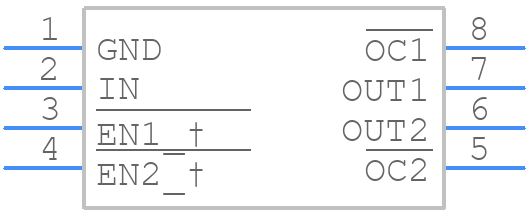

Use the download button to access the TPS2062DRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
