TPS2065CDGNR - Texas Instruments

Description: 1.0A, 4.5-5.5V USB power switch, active-high enable, output discharge

Download TPS2065CDGNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

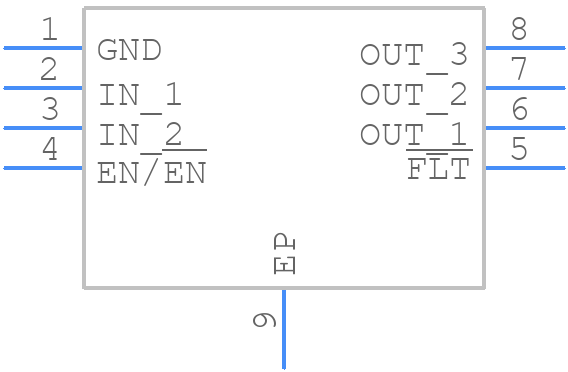

TPS2065CDGNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2065CDGNR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008C
click to zoom
3D Models
TPS2065CDGNR - Texas Instruments - 3D model - Small Outline Packages - DGN0008C
click to zoom

TPS2065CDGNR Details

  • Manufacturer Part Number:

    TPS2065CDGNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2065CDGNR Frequently Asked Questions (FAQs)

  • The maximum capacitance depends on the application and the desired output voltage ripple. As a general guideline, TI recommends using capacitors with a capacitance value between 10uF to 100uF. However, it's essential to perform a thorough stability analysis to ensure the capacitor value does not affect the regulator's stability.
  • To ensure stability, follow the guidelines in the datasheet for selecting the output capacitor. Additionally, perform a thorough stability analysis using the regulator's transfer function and the output capacitor's impedance characteristics. You can use TI's WEBENCH tool or other simulation software to aid in the analysis.
  • The minimum input voltage required for the TPS2065CDGNR to operate is 2.7V. However, the recommended minimum input voltage is 3.5V to ensure the regulator can maintain its specified performance and accuracy.
  • The TPS2065CDGNR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to perform thermal analysis and ensure the device is properly heat-sinked to maintain a safe operating temperature.
  • To protect the TPS2065CDGNR from input voltage transients, use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. Additionally, ensure the input capacitor is properly sized to filter out high-frequency noise and transients.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2065CDGNR Overview

Use the download button to access the TPS2065CDGNR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS20, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
