TPS2065DGNR - Texas Instruments

Description: TEXAS INSTRUMENTS - TPS2065DGNR - Power Distribution Switch, Current Limited, High Side, Active High, 1 Output, 5.5V, 1.5A, MSOP-8

Download TPS2065DGNR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

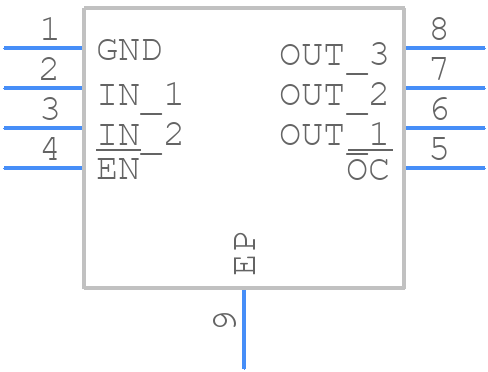

TPS2065DGNR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2065DGNR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGN0008C
click to zoom
3D Models
TPS2065DGNR - Texas Instruments - 3D model - Small Outline Packages - DGN0008C
click to zoom

TPS2065DGNR Details

  • Manufacturer Part Number:

    TPS2065DGNR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    UNDERVOLTAGE LOCKOUT

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    LOAD SWITCH

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.7 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.07 mm

  • Supply Current-Max (Isup):

    0.07 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS2065DGNR Frequently Asked Questions (FAQs)

  • The maximum capacitance depends on the application and the desired performance. However, as a general guideline, TI recommends using capacitors with a capacitance of 10uF or less to ensure stability and optimal performance.
  • To ensure stability, follow the layout guidelines in the datasheet, use a low-ESR capacitor, and add a 1-2nF capacitor in parallel with the output capacitor to improve stability. Additionally, ensure the input voltage is within the recommended range and the output current is within the specified limits.
  • The minimum input voltage required for the TPS2065DGNR to operate is 2.7V. However, the recommended input voltage range is 3.0V to 5.5V for optimal performance.
  • The TPS2065DGNR is rated for operation up to 85°C. However, the device's performance and reliability may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, consider using a heat sink or a thermal management system to keep the device within its recommended operating temperature range.
  • The output voltage of the TPS2065DGNR is determined by the resistor divider network connected to the FB pin. Use the formula: Vout = 1.25V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
